IRGS4B60KD1PBF

Test Condition : 400V, 4A, 100 Ohm, 15V

Product Category : IGBT Modules

Current - Collector Pulsed (Icm) : 22A

Voltage - Collector Emitter Breakdown (Max) : 600V

Switching Energy : 73µJ (on), 47µJ (off)

Mounting Type : Surface Mount

Manufacturer : Infineon Technologies

Minimum Quantity : 600

Operating Temperature : -55°C ~ 175°C (TJ)

IGBT Type : NPT

Reverse Recovery Time (trr) : 93ns

Supplier Device Package : D2PAK

Part Status : Obsolete

Packaging : Tube

Gate Charge : 12nC

Td (on/off) @ 25°C : 22ns/100ns

Input Type : Standard

Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Current - Collector (Ic) (Max) : 11A

Power - Max : 63W

Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A

Series : -

Description : IGBT 600V 11A 63W D2PAK

Contact Now

The IRGS4B60KD1PBF,from Infineon Technologies,is IGBT Modules.what we offer have competitive price in the global market,which are in original and new parts.If you would like to know more about the products or apply a lower price, please contact us through the “online chat” or send a quote to us!

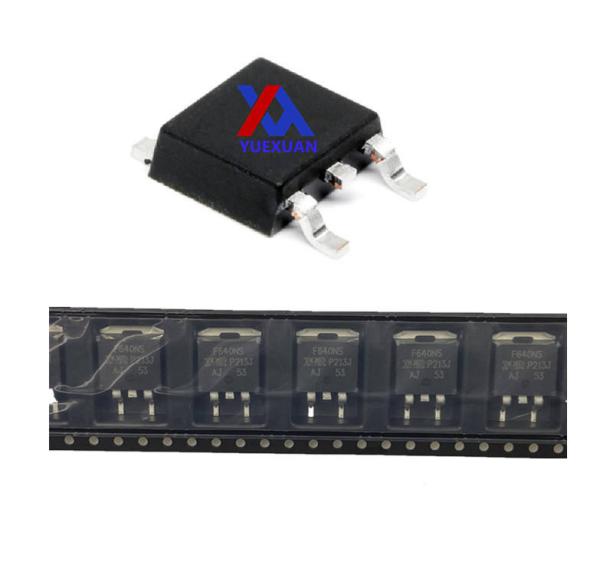

IRGS4B60KD1PBF Images
